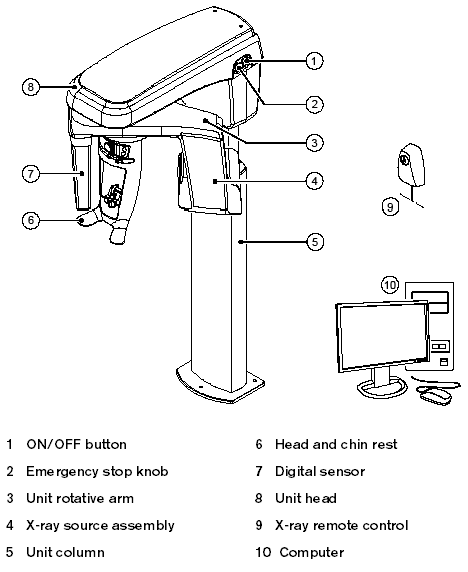

The following figure shows the components of the CS 8100:

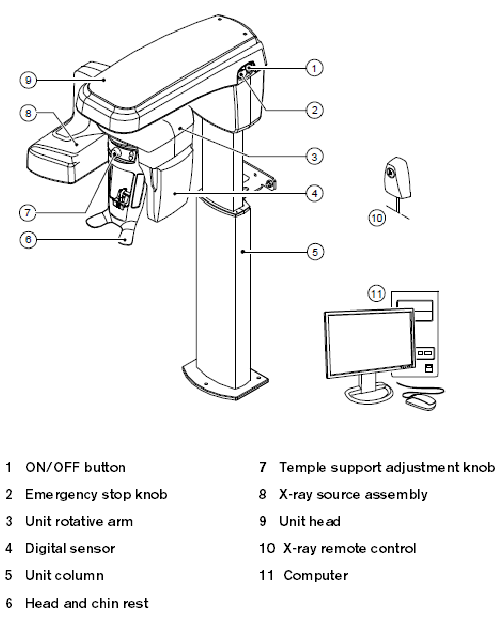

The following figure shows the components of the CS 8200 3D:

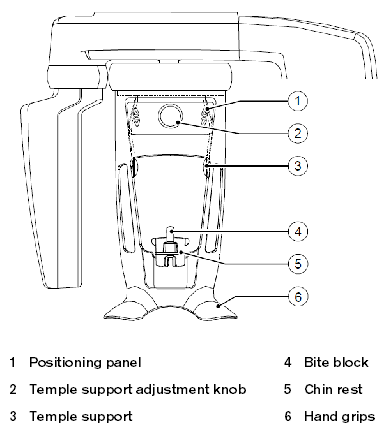

The following figure shows the components of the head and chin rest for both the CS 8100 and CS 8200 units:

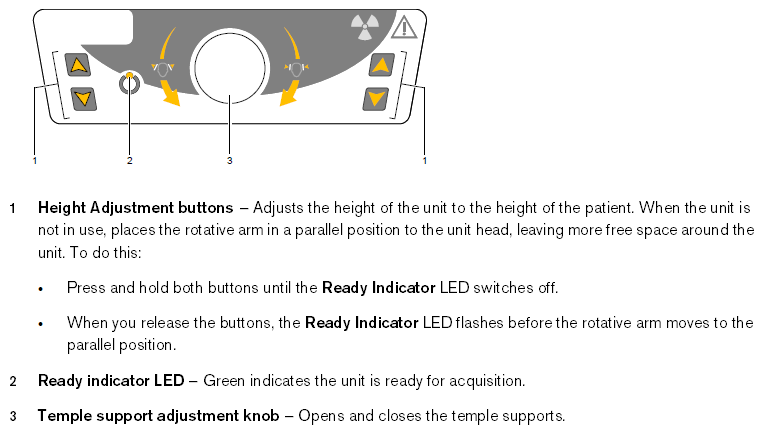

The control panel is a console on the head and chin rest. It enables you to position a patient correctly before you acquire an image.

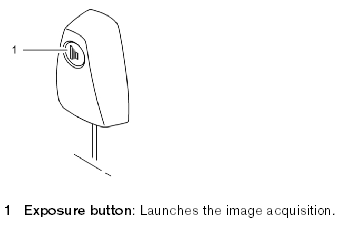

The x-ray remote control enables you to launch a radiological image using the exposure button outside the x-ray room. You must press and hold the exposure button until the end of acquisition.
Note: Premature release of the exposure button interrupts the acquisition.
In addition to the basic components, the following accessories are delivered with the CS 8100, CS 8100 3D, and CS 8200 3D units:
Panoramic chin rest
Sinus chin rest
TMJ nose rest
Standard bite block
Bite block for endentulous patients
Frankfort guide bite block for panoramic procedures
Single use sheaths for bite block (500 per box)
Single use sheaths for 3D bite block (100 per box)
3D bite block support
3D bite block (R1)
3D molar bite block (R2)
3D child bite block (R4)
3rd molar offset 3D bite block (2)
See the CS 8100 and CS 8100 Access User Guide (AM784) and the CS 8100 3D User Guide (SM842) or the CS 8200 3D User Guide (SMA65) or CS 8200 3D SC User Guide (SM987) for more information.
