Using the Wireless Camera

You can use a battery or cable to power the wireless camera.

Note: If you use a cable, the functions of the LEDs and buttons are the same as those described for the wired camera.

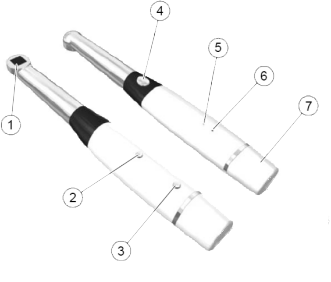

See the diagram and table for wireless camera components.

Number	Component Name	Description
1	LED and lens window	Use to illuminate the oral cavity.
2	Power button	Press for 3 seconds to power on or power off the camera.
3	Battery Release button	Press button and pull to release the battery.
4	Shutter Release button	Press halfway down to automatically focus the camera. Press completely and release to use video mode.
5	Battery indicator	A green light indicates full battery strength. A blinking orange light indicates a low battery.
6	Wi-Fi indicator	A solid blue light indicates a working connection. A blinking blue light indicates a connection issue.
7	Battery	Insert the rechargeable cylindrical Lithium-ion battery into the bottom of the camera until it is securely in place.
