Working With View Screens in the Workspace Tabs
The 2D MPR View Screens
|
|
The axial plane shows the horizontal plane and can be moved up and down.
|
|
|
|
The coronal plane shows the vertical plane and can be moved front to back.
|
|
|
|
The sagittal plane shows the vertical plane and can be moved side to side.
|
|
Axial Plane
Coronal Plane

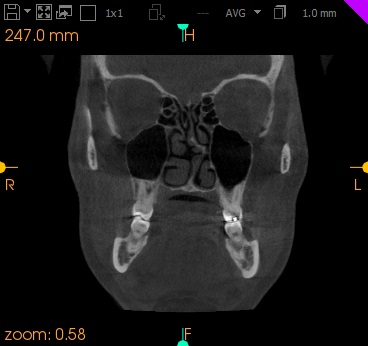

Each 2D MPR view screen has a colored triangular tag in the top right corner. These colors are important because they identify 2D MPR slice planes throughout the system.
For example the Sagittal Slice View Screen is identified by a green tag (
). Therefore, on both the Axial Slice View Screen and Coronal Slice View Screen, the position of the sagittal plane is shown by green handles at the edges of the view screen.
