Launching the Impression Acquisition

To launch the acquisition, follow these steps:

IMPORTANT: Make sure that you position the acquisition object correctly to obtain quality data.

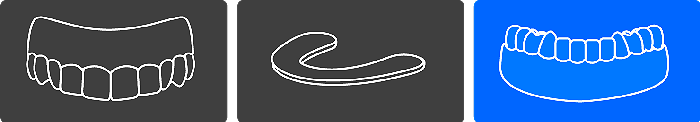

Select either the lower jaw or upper jaw acquisition mode.

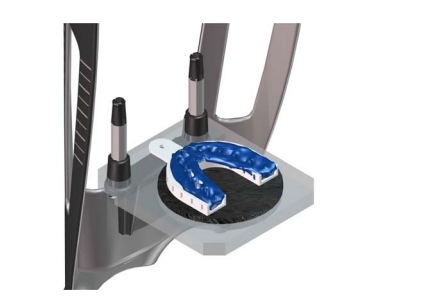

See the on-screen illustration on how to correctly position the impression at the center of the black foam.

Launch the X-ray with the remote control:

IMPORTANT: If you need to stop the acquisition due to a problem, release the exposure button of the remote control, or press the red emergency stop button.

Press and hold the exposure button until the end of the acquisition is indicated by the on-screen “Release Switch” message.
The turns yellow , and a warning sound is heard, indicating X-ray emission.
The accessory position detector will change color during the X-ray emission.

Note: You will be able to see the object in live-view mode on the workstation screen during the acquisition.

When the acquisition ends, the acquired image is displayed on your screen.
