Launching the Bite Index Scan to Register the Occlusion for Impression Objects

To launch the bite index scan, follow these steps:

Select the bite index scan acquisition mode.

Do the following:

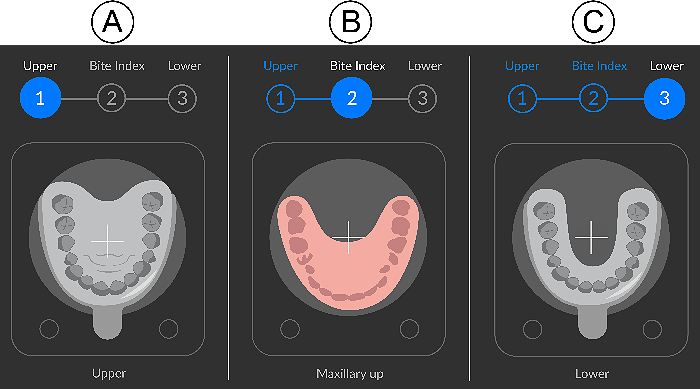

Place the upper jaw impression at the center of the black foam (A), then launch an X-ray with the remote control.

Remove the upper jaw impression. Place the bite index scan at the center of the black foam (B), then launch an X-ray with the remote control.

Remove the bite index scan. Place the lower jaw impression at the center of the black foam (C), then launch an X-ray with the remote control.

Observe the following when you launch an X-ray for each of the objects:

IMPORTANT: If you need to stop the acquisition due to a problem, release the exposure button of the remote control, or press the red emergency stop button.

Press and hold the exposure button until the end of the acquisition is indicated by the on-screen “Release Switch” message.

The turns yellow , and a warning sound is heard, indicating X-ray emission.
The accessory position detector will change color during the X-ray emission.

Note: You will be able to see the object in live-view mode on the workstation screen during the acquisition.

When the acquisition ends, the acquired image is displayed on your screen.
