The 3D View Screen

Displaying MPR Planes

The 3D View Screen displays the three orthogonal MPR planes in different colors. You can use the Planes button in the 3D View Screen to choose different planes display options.



In the 3D View Screen, click the Planes button in the View Screen toolbar to select one of the 3D Planes settings as follows.









Planes: No plane











No slice planes displayed.





Planes: Wireframe











Displays the positions of slice planes in the 3D view as transparent planes with colored edges.





Planes: MPR









Displays the positions of slice planes in the 3D view as MPR planes with colored edges. See “Repositioning MPR Planes in the 3D View Screen”.

Note: In order to see MPR detail on the slice planes more clearly, slide the 3D opacity slider towards 0. See “Using the 3D Sliders”.

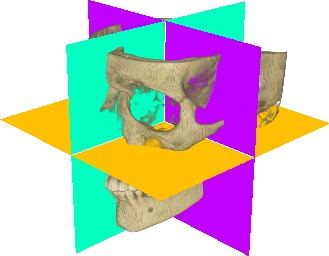

Planes: Color











Displays the position of the slice planes in the 3D view as colored, opaque planes.
