Launching the Acquisition for 3D Face Scan Images

To launch the acquisition, follow these steps:

Leave the X-ray room and close the door. You must watch the patient by visual contact or on the screen during acquisition.
Launch the acquisition with the remote control:

IMPORTANT: If you need to stop the acquisition due to a problem, release the exposure button of the remote control or press the red emergency stop button.

Press and hold the exposure button until the end of the acquisition is indicated by the on-screen “Release Switch” message.

Note: You will be able to see the patient in live-view mode on the workstation screen during the acquisition.

When the acquisition ends, the acquired image appears on your screen.

Face Scan image

Check the image quality:

If you are satisfied with the acquired image, click , the image transfers automatically to the Imaging window.
If you are not satisfied with the acquired image, click . The following window displays:

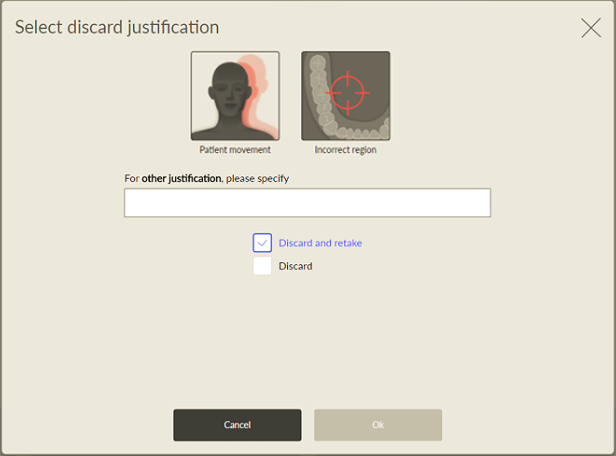

Face Scan Rejection Justification window

Select either one of the displayed reasons or enter other reasons in the text field.
To return to the 3D Face Scan Acquisition interface and to re-launch the acquisition, select Discard and retake and click OK.
To return to CS Imaging and to start a new acquisition, select Discard and click OK.

When the acquisition is finished, release the patient, return the metal objects in the jewelry tray to the patient, and reset the unit rotative arm for the next acquisition.
