CS 9600 Workstation
The CS 9600 workstation is dedicated to image reconstruction.

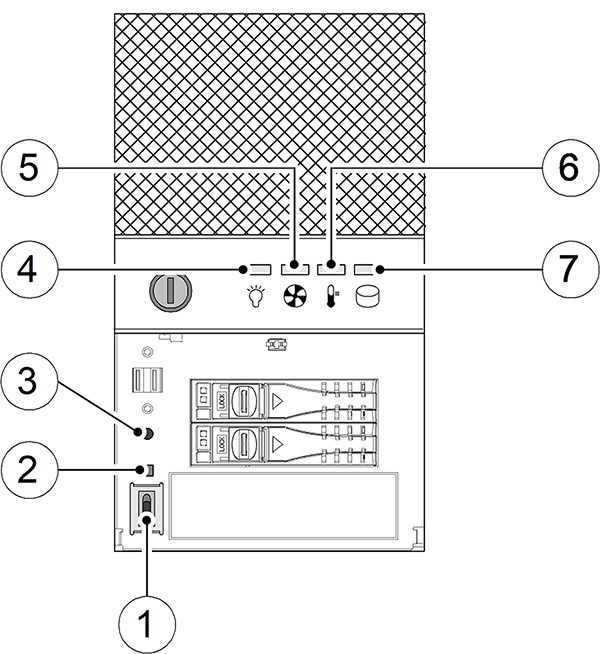

Figure 6 - CS 9600 Workstation
|
1 |
On/Off button |
|
|
|
|
2 |
Reset Signal button |
|
|
|
|
3 |
System Reset button |
|
|
|
|
4 |
Power LED indicator |
Normal (Blue) |
Abnormal (Red) |
|
|
5 |
Fan Cooling Status LED indicator |
Normal (Blue) |
Abnormal (System fan fail) (Red) |
Abnormal (CPU fan fail) (Pink) |
|
6 |
Chassis Temperature LED indicator |
Normal (Blue) |
Abnormal (System temperature fail) (Red) |
Abnormal (CPU temperature fail) (Pink) |
|
7 |
Hard Disk Drive LED indicator |
Data access (Blue) |
|
|
