Mobile Components
Figure 1 illustrates the:
-
Up and down movement of the unit
-
Rotation and translation movement of the rotative arm
 |
IMPORTANT: The patient can enter by either the left side or the right side of the unit. |

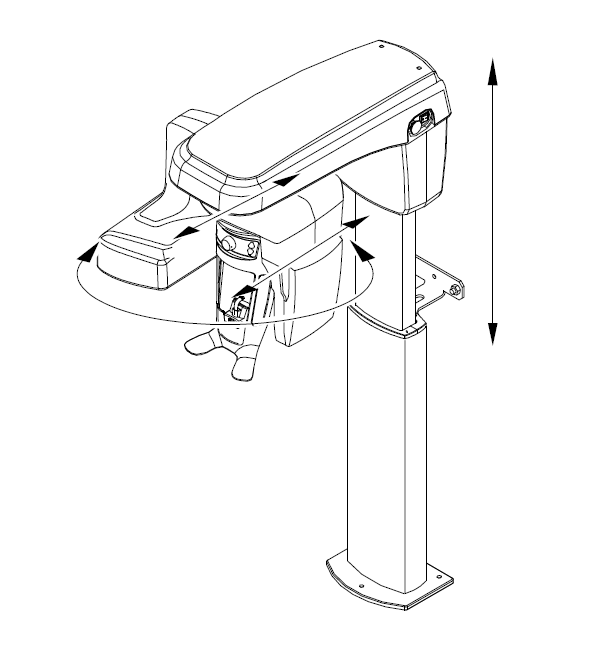

Figure 1 Unit Mobile Components
