Positioning the Patient with CS 2200
To position the patient, you must have:

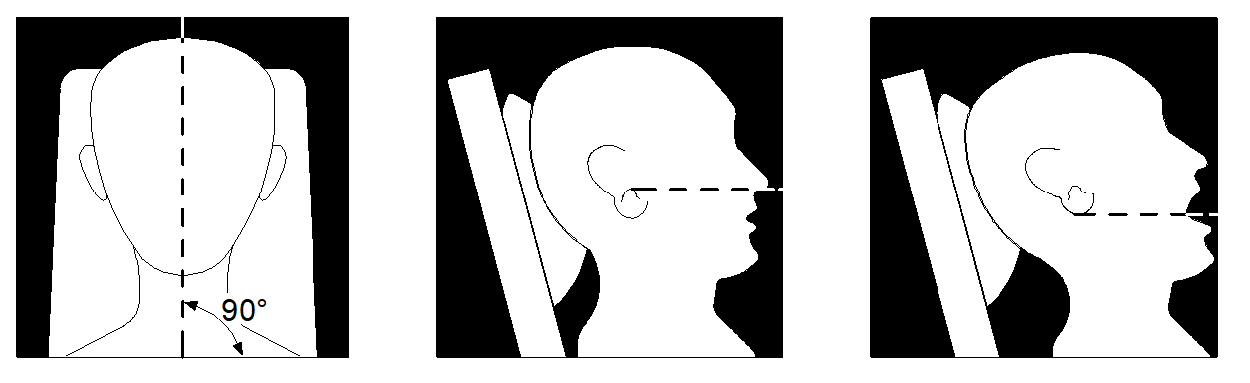

- The patient sit with the vertical sagittal plane.
- The patient’s head positioned as follows:
- For upper maxillary radiography, the Frankfort plane (nose-ear plane) must be horizontal.
- For lower maxillary radiography, the occlusal plane must be horizontal.
