The CS 7200 is used to scan and review intraoral x-ray images. When an imaging plate is exposed to x-rays, a digital image is displayed on the workstation screen. Afterwards, the system erases the imaging plate and ejects it. The imaging plate is ready to be used again.
The following components comprise the hardware of the CS 7200:
CS 7200 unit
Intraoral imaging plates
Protective sheaths
Power supply and adapters
USB cable

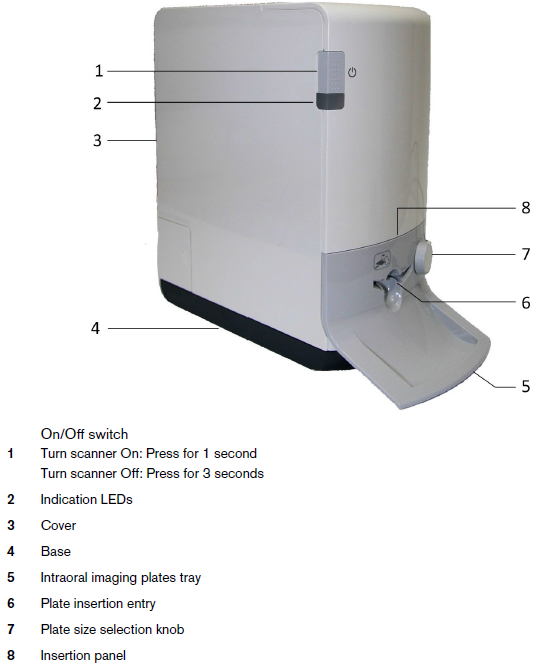

The following figure shows a front view of the CS 7200:

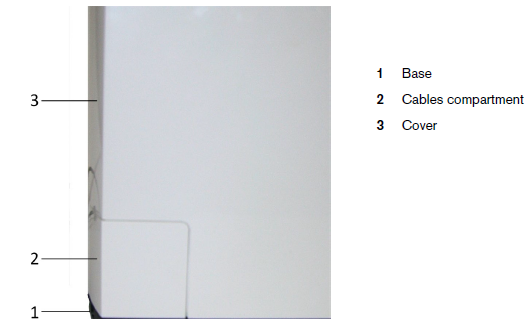

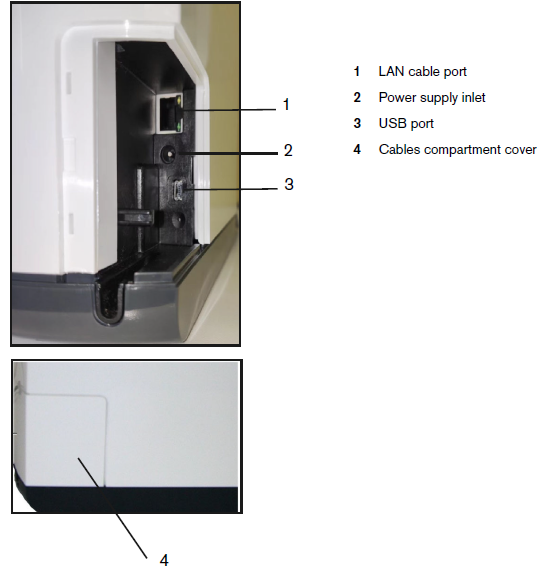

The following figures show a rear view and the cables compartment of the CS 7200:
Intraoral plates come in sizes 0, 1, and 2. The smart function of the imaging plates is utilized when using the Scan & Go device.
Hygienic sheaths come in sizes 0, 1, and 2. Each sheath has an adhesive strip for sealing. One side of the sheath is transparent, so the plate reference can be seen. Each sheath has a tear line which is opened to insert a plate into the sheath.
The CS 7200 includes the unit, the Acquisition interface, smart plates for intraoral imaging, and an intraoral plate transportation box and pad.
