Launching the Triple Tray Impression Acquisition

IMPORTANT: Make sure that the triple tray impression is dry. The triple tray impression must be flat and level when you position it on the black foam. If it is not, use a scalpel to cut and level it.

IMPORTANT: Make sure that you position the acquisition object correctly to obtain quality data.

To launch the triple tray impression acquisition, follow these steps:

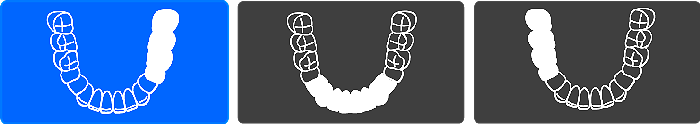

Select the triple tray impression acquisition mode.

See the on-screen illustration on how to correctly position the triple tray impression at the center of the black foam.

The triple tray impression can be of the following types:

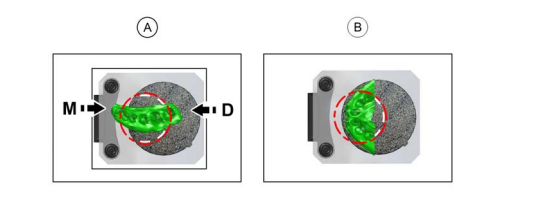

For posterior restorations (A): The mesial surface must be at the front end of the black foam.
For anterior restorations (B): The arch of the triple tray impression must be at the front end of the black foam.

IMPORTANT: You must place the triple tray impression on the black foam in the same orientation as when you take it out of the patient's mouth.

Launch the X-ray with the remote control:

IMPORTANT: If you need to stop the acquisition due to a problem, release the exposure button of the remote control, or press the red emergency stop button.

Press and hold the exposure button until the end of the acquisition is indicated by the on-screen “Release Switch” message.
The turns yellow , and a warning sound is heard, indicating X-ray emission.
The accessory position detector will change color during the X-ray emission.

Note: You will be able to see the object in live-view mode on the workstation screen during the acquisition.

When the acquisition ends, the acquired image is displayed on your screen.
