Launching the Appliance Acquisition

important_icon IMPORTANT: Make sure that you position the acquisition object correctly to obtain quality data.

To launch the acquisition, follow these steps:

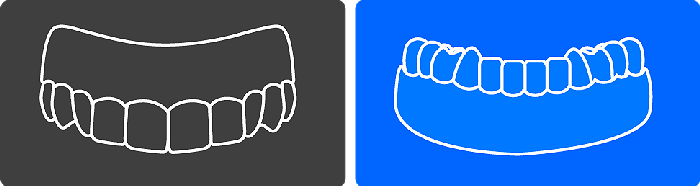

  1. Select either the lower jaw or upper jaw acquisition mode.

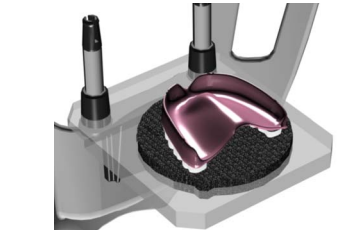

  1. See the on-screen illustration on how to correctly position the appliance at the center of the black foam.

important_icon IMPORTANT: You must place the teeth of the appliance on the black foam in the same orientation as when you take it out of the patient's mouth.

  1. Launch the X-ray with the remote control:

important_icon IMPORTANT: If you need to stop the acquisition due to a problem, release the exposure button of the remote control or press the red emergency stop button.
note_icon Note: You will be able to see the object in live-view mode on the workstation screen during the acquisition.

When the acquisition ends, the acquired image is displayed on your screen.
